ASSA Modular 565 Lock Case - Supply and Fit Only

• Product Code: R3007
• Availability: Order Period

Description

•    Single lock case for exterior and interior doors
•    Used for outward and inward-opening doors
•    Lockable with Scandinavian oval cylinder

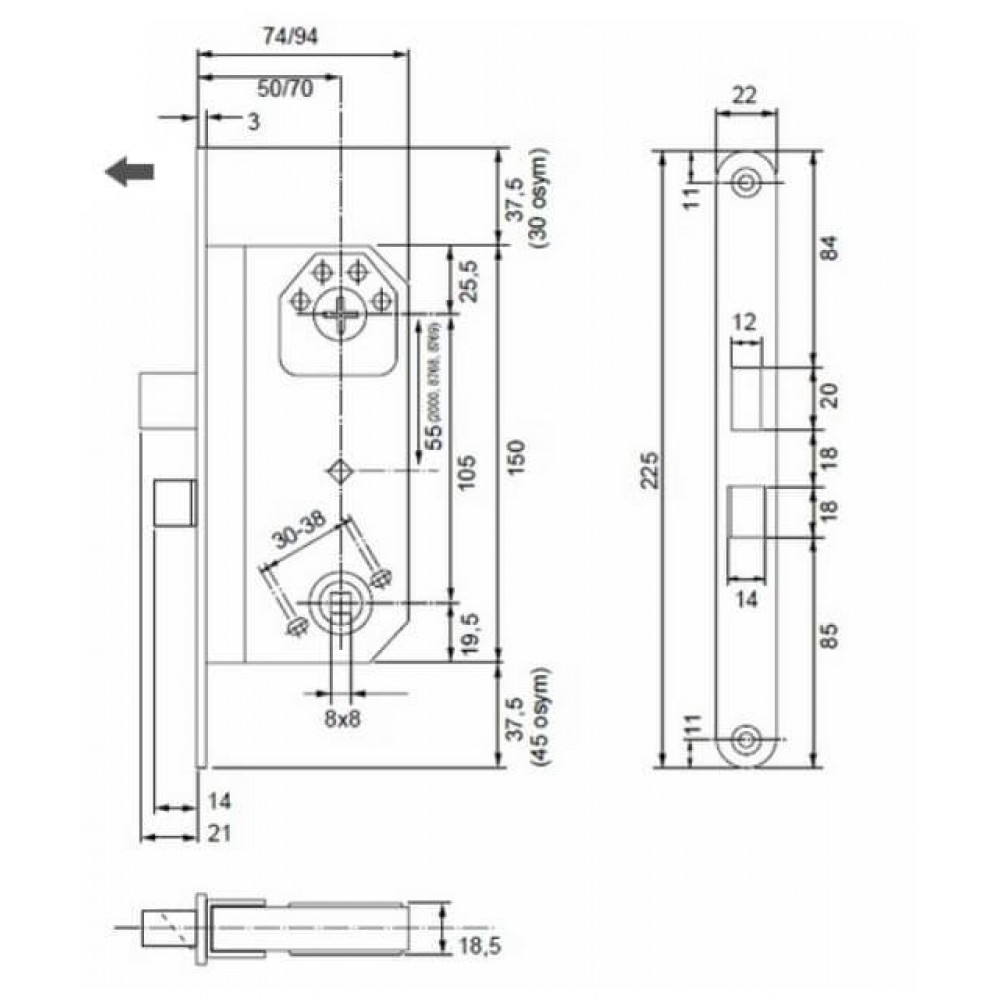

•    Face place 25 x 2 mm
•    Back set 50 mm
•    Centres/PZ 105mm
•    Dead bolt and latch bolt
•    Handing of the lever latch is reversible
•    Operated with a key or thumb turn

Operation and features
When the door is in the unlocked position, wedge bolts and dead bolt are retracted. The latch bolt is in operation and keeps the door in place and closed. The handle is horizontal and is pushed down to open the door.

Accessories
•    Scandinavian oval cylinder - see Locks & Cylinders page
•    Handles - see Door Handles page
•    Cylinder rings and roses - see Accessories page
