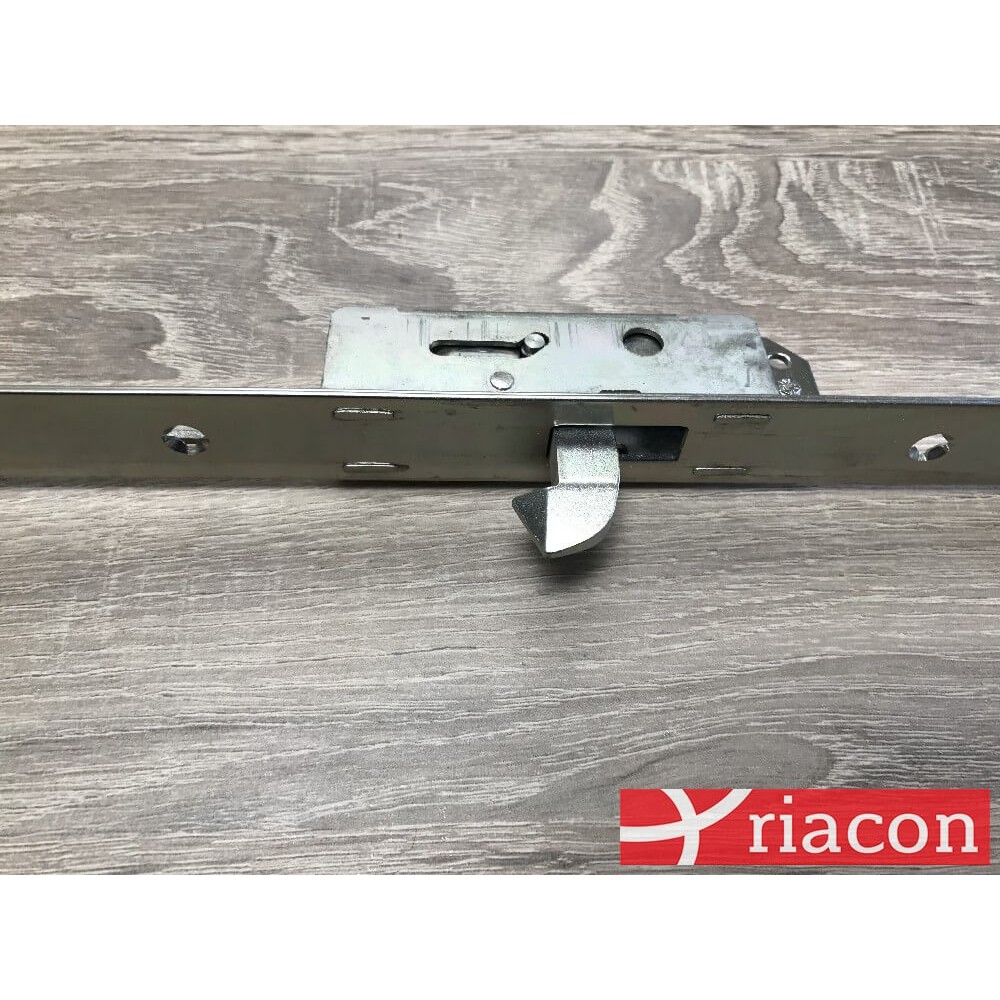

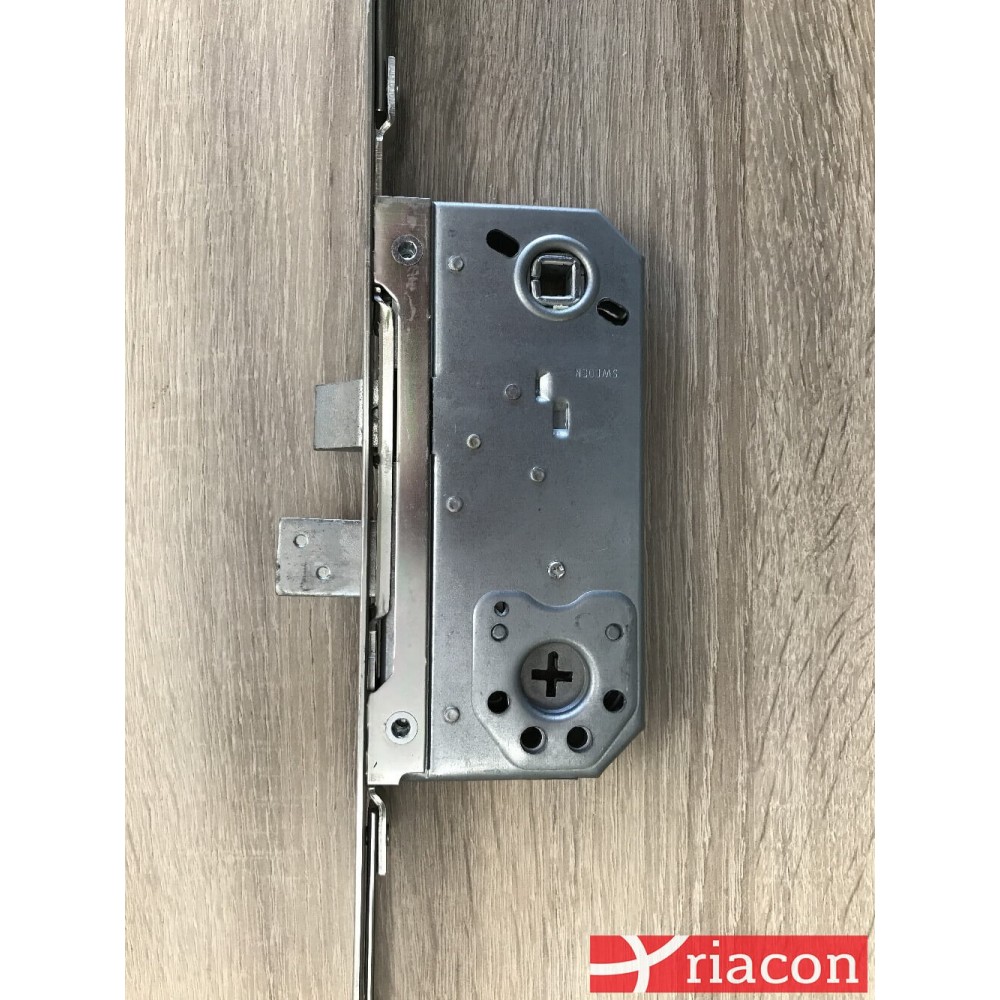

ASSA M5002 (2026) Multi Point Lock - Supply and Fit Only

• Product Code: R3005
• Availability: Order Period

Description

•    Heavier multi point lock for doors for increased security
•    Used for outward and inward-opening doors
•    Lockable with 360 degree key turn
•    Lockable with oval cylinder
•    Face place 25 x 2 mm
•    Back set 50 mm
•    Centres/PZ 105mm

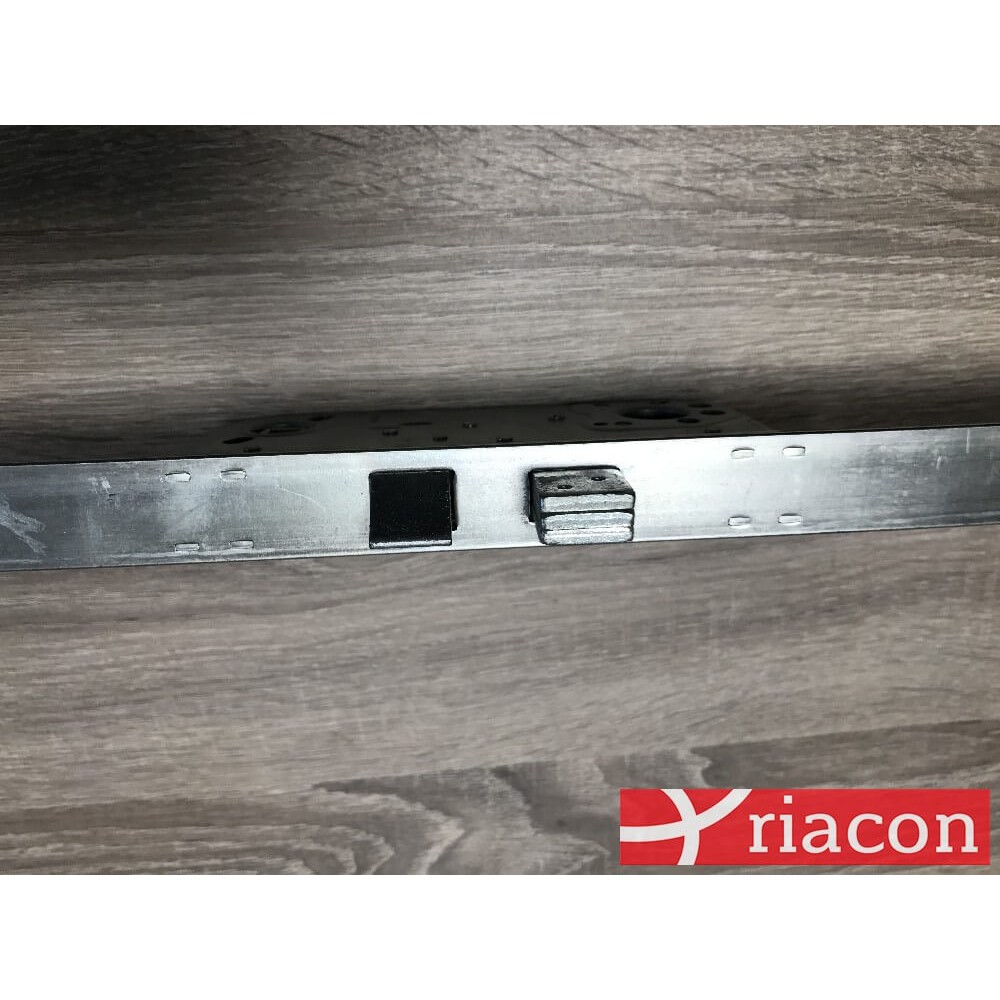

•    Dead bolt, latch bolt and two security wedge bolts
•    Available in right or left handing. Handing can be changed by loosening the lock housing from the plate and rotating the latch bolt
•    Can replace an existing standard model type, with minor modifications in the door, to accommodate the heavier hook cases
•    This is also available with an additional deadbolt feature located 500mm above the handle, for increased security. Please contact us for further information

Operation and Features
When the door is unlocked, wedge bolts and dead bolt are retracted. The latch bolt is in operation and keeps the door in place and closed. The handle is horizontal and is pushed down to open the door.

Locking is done by turning the handle up. The wedge bolts are then extended and engage in the receivers. The locking is then done with a key or thumb turn. The dead bolt is extended and is locked together with the wedge bolts.

Accessories
•    Scandinavian oval cylinder - see Locks & Cylinders page
•    Handles - see Door Handles page
•    Cylinder rings and roses - see Accessories page
