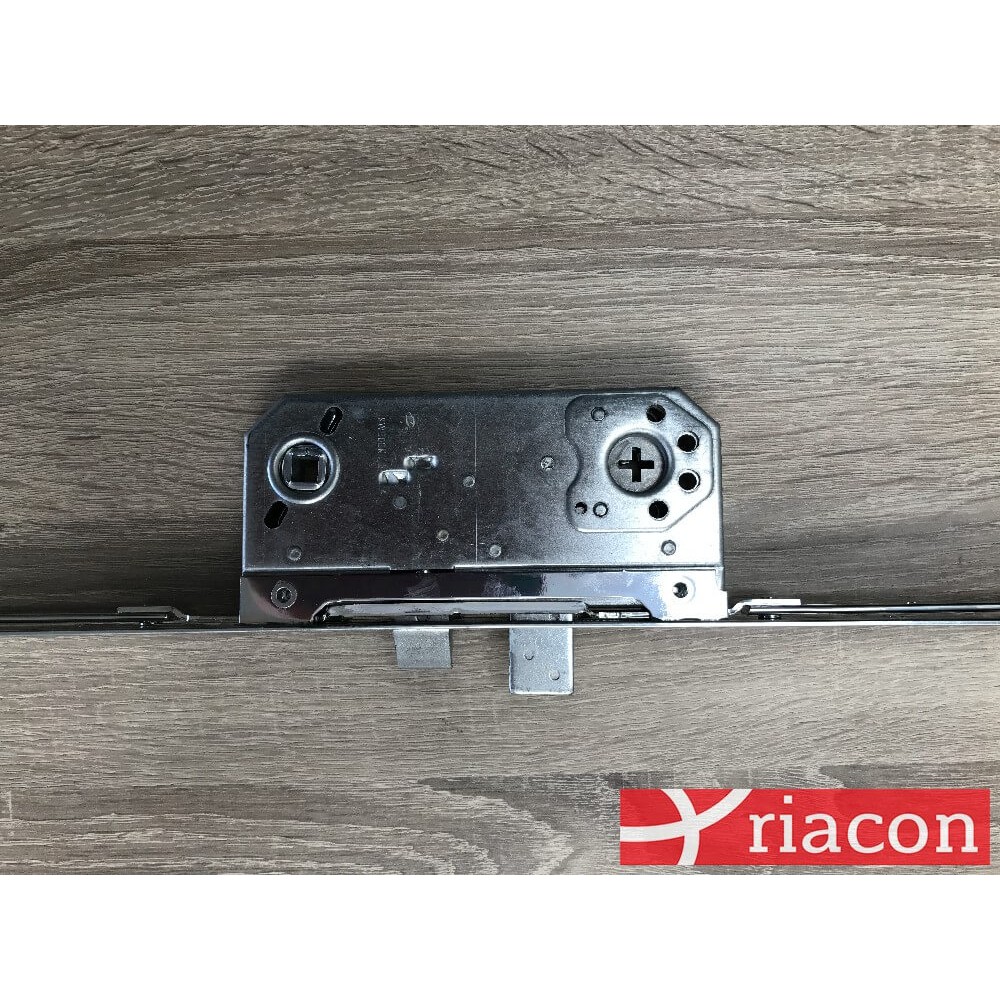

ASSA M5001 (2150R) Multi Point Lock - Supply and Fit Only

• Product Code: R3003
• Availability: Order Period

Description

•    Multi point lock for doors
•    Used for outward and inward-opening doors
•    Lockable with 360 degree key turn
•    Lockable with Scandinavian oval cylinder
•    Face place 25 x 2 mm
•    Back set 50 mm
•    Centres/PZ 105mm

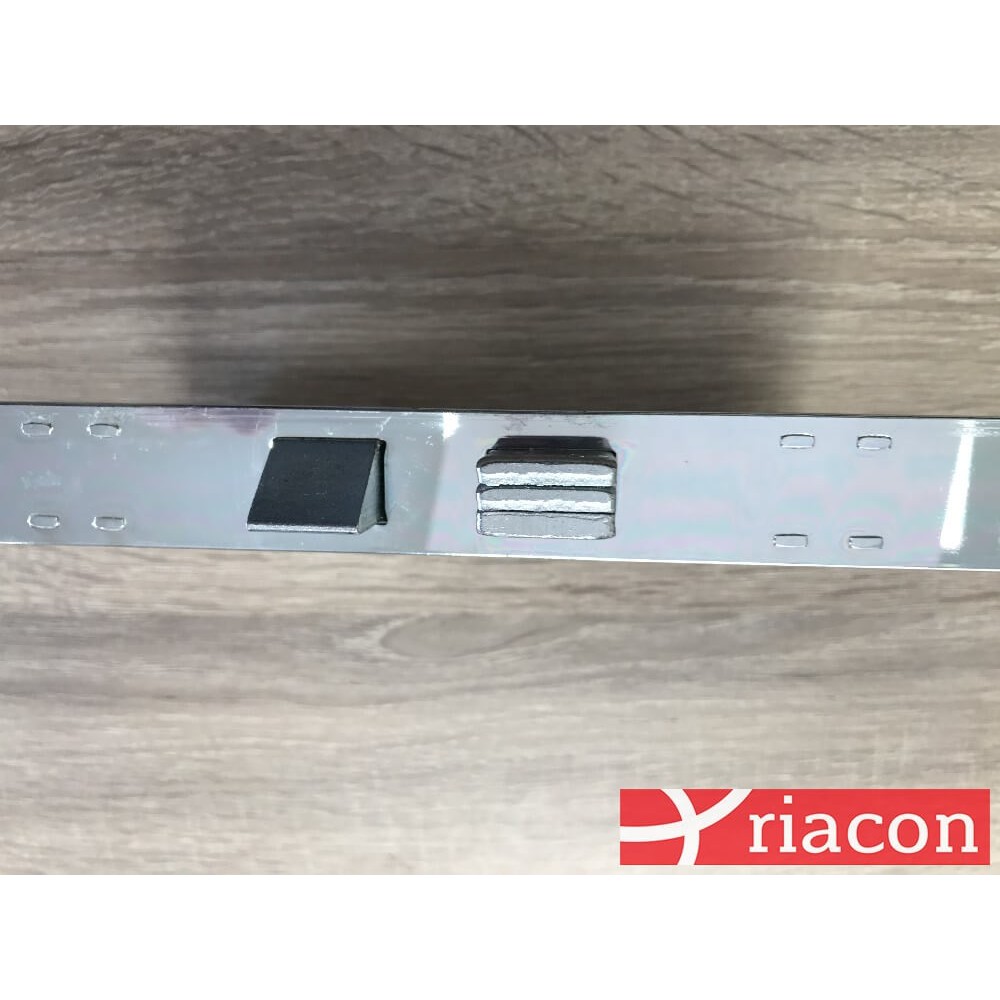

•    Dead bolt, latch bolt and two wedge bolts
•    Available in right or left handing. Handing can be changed by loosening the lock housing from the plate and rotating the latch bolt.
•    Suits new Rationel doors with oval cylinder

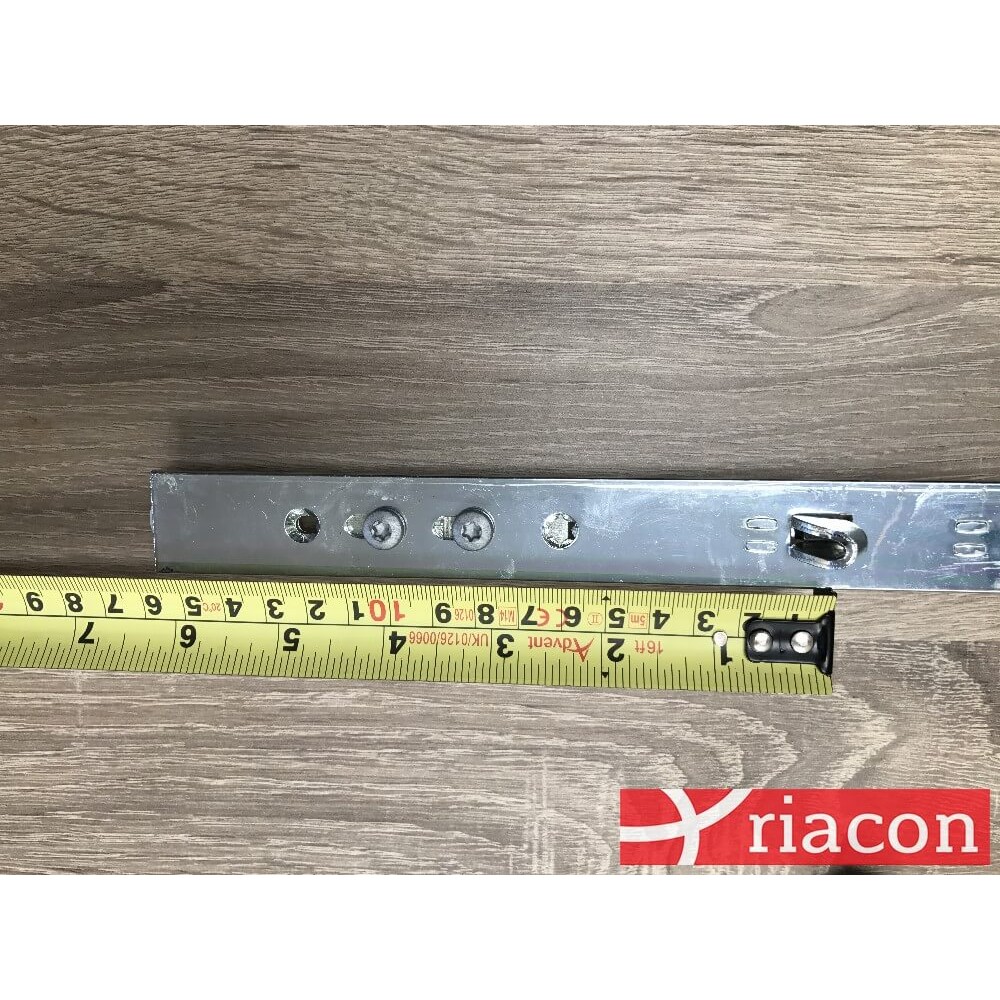

•    This locking mechanism is very similar to the standard 2150 model, with the difference being that the bottom hook is at a lower location. See picture.

Operation and features
When the door is in the unlocked position, wedge bolts and dead bolt are retracted. The latch bolt is in operation and keeps the door in place and closed. The handle is horizontal and is pushed down to open the door.

Locking is done by turning the handle up. The wedge bolts are then operated and enter the receivers. The locking is then done with a key or thumb turn. The dead bolt goes into operation and is locked together with the wedge bolts.

Accessories
•    Scandinavian oval cylinder - see Locks & Cylinders page
•    Handles - see Door Handles page
•    Cylinder rings and roses - see Accessories page
