ASSA Connect 310 MPL - Supply and Fit Only

• Product Code: R3006
• Availability: Order Period

Description

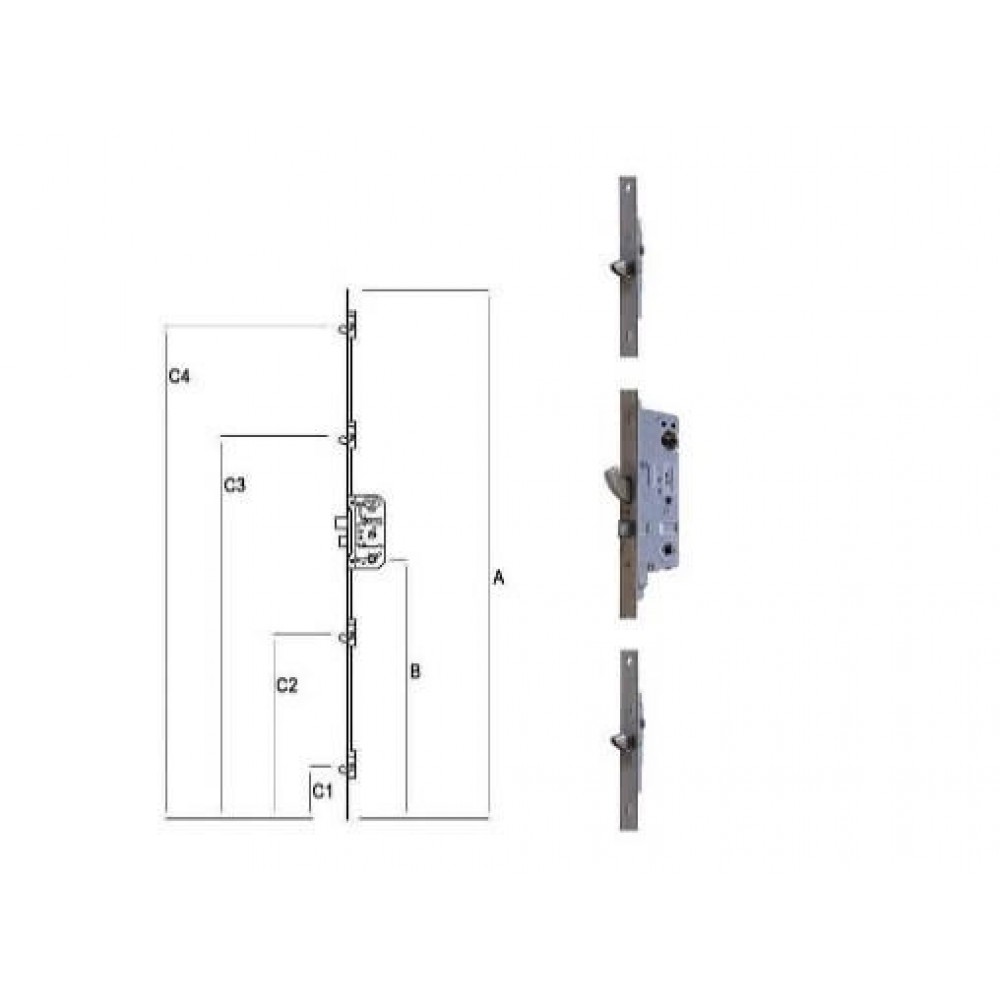

•    Multi-point lock for the front doors, windows and narrow profile doors
•    Similar to Nordan locks, with minor adjustments

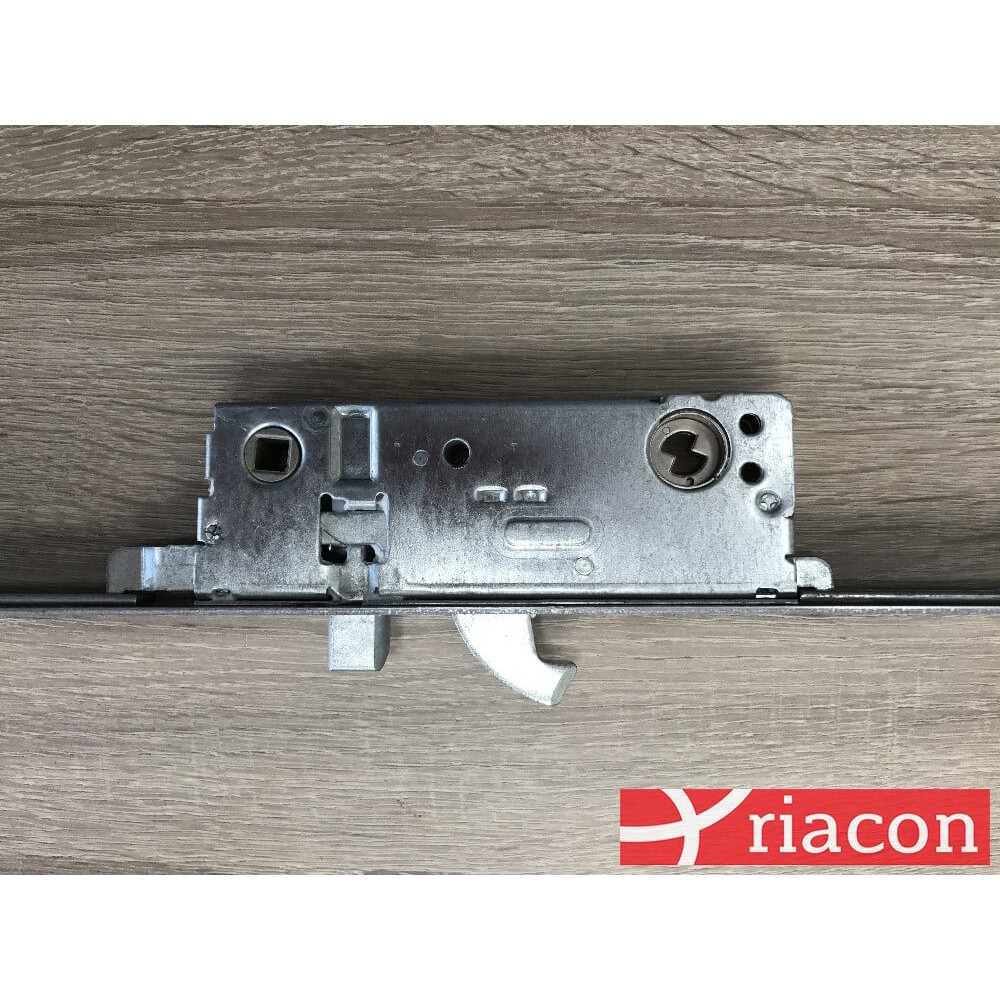

•    Multi-point lock with centre positioned latch and hook bolt
•    90 degree locking and wedge bolts
•    90 degree key-turn
•    Lockable with oval cylinder
•    Face place 25 x 2 mm
•    Back set 40 mm
•    Centres/PZ 105mm

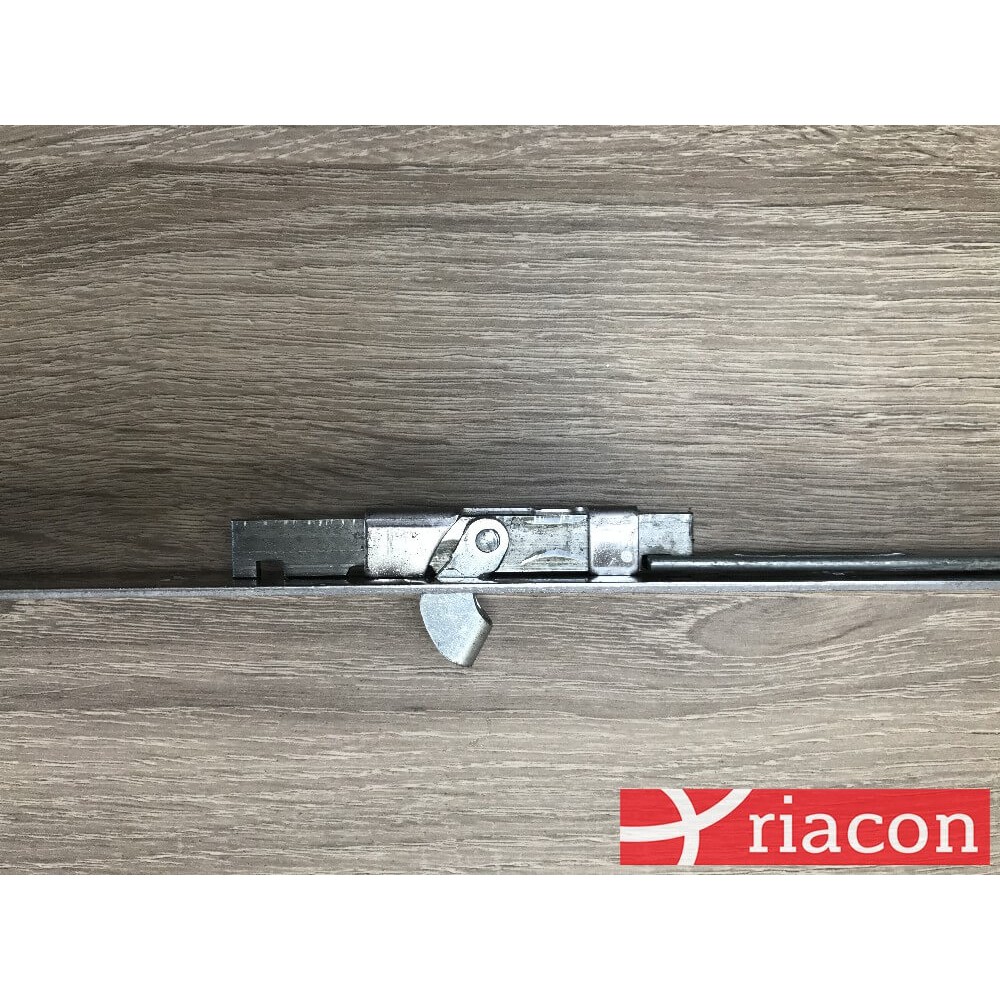

•    Two wedge bolts
•    Available in right and left handing, by order, or handing of the lever latch is reversible
•    Lever latch and reinforced hook bolt.
•    2 No. wedge bolts for increased sealing

Operation and features
When the door is unlocked, the hook, wedge bolts and hook bolt are retracted. The latch bolt is in operation and keeps the door in place in the closed position. The handle is in a horizontal position and is pushed down to open the door. The door can be closed without pushing the handle down. The door is locked when the handle is lifted upwards. The handle returns to a horizontal position.

To lock: lift the handle to lock out the hook bolt and wedges, turn the key 90 degrees to interlock the lock case.

To unlock: turn the key 90 degrees to unlock and open the door by pushing down the handle that draws in the latch and bolts."

Accessories
•    Oval cylinder - see Locks & Cylinders page
